Value Built High Sensitive Partial Discharge Imager For Weak Signal Capturing
Λεπτομέρειες
Περιγραφή προϊόντων

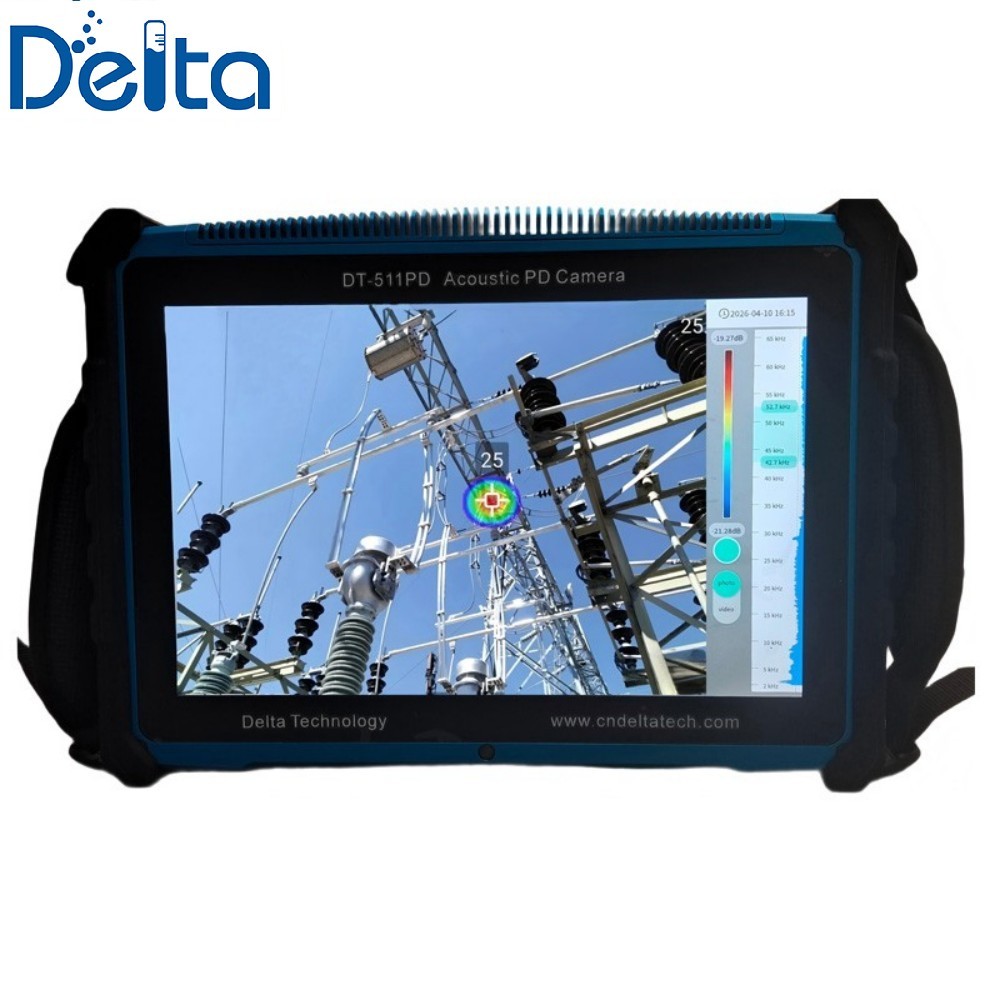

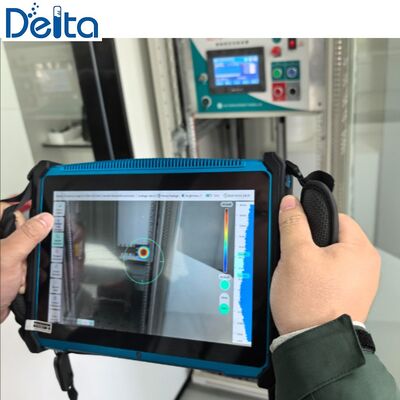

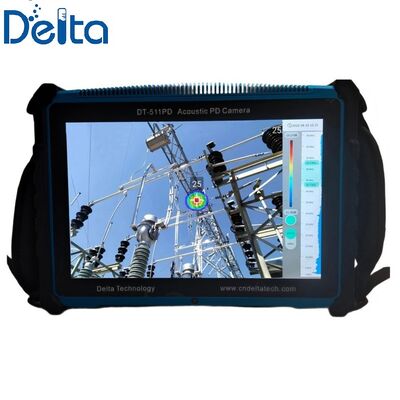

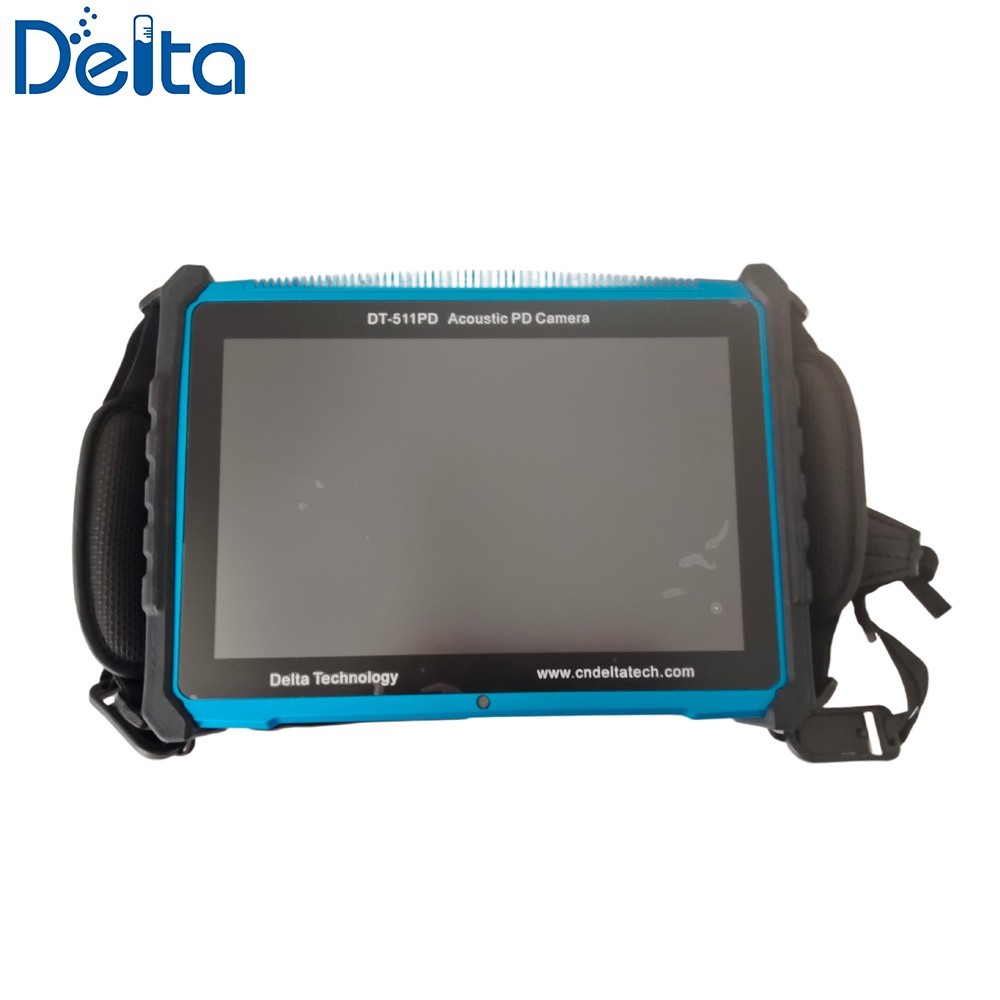

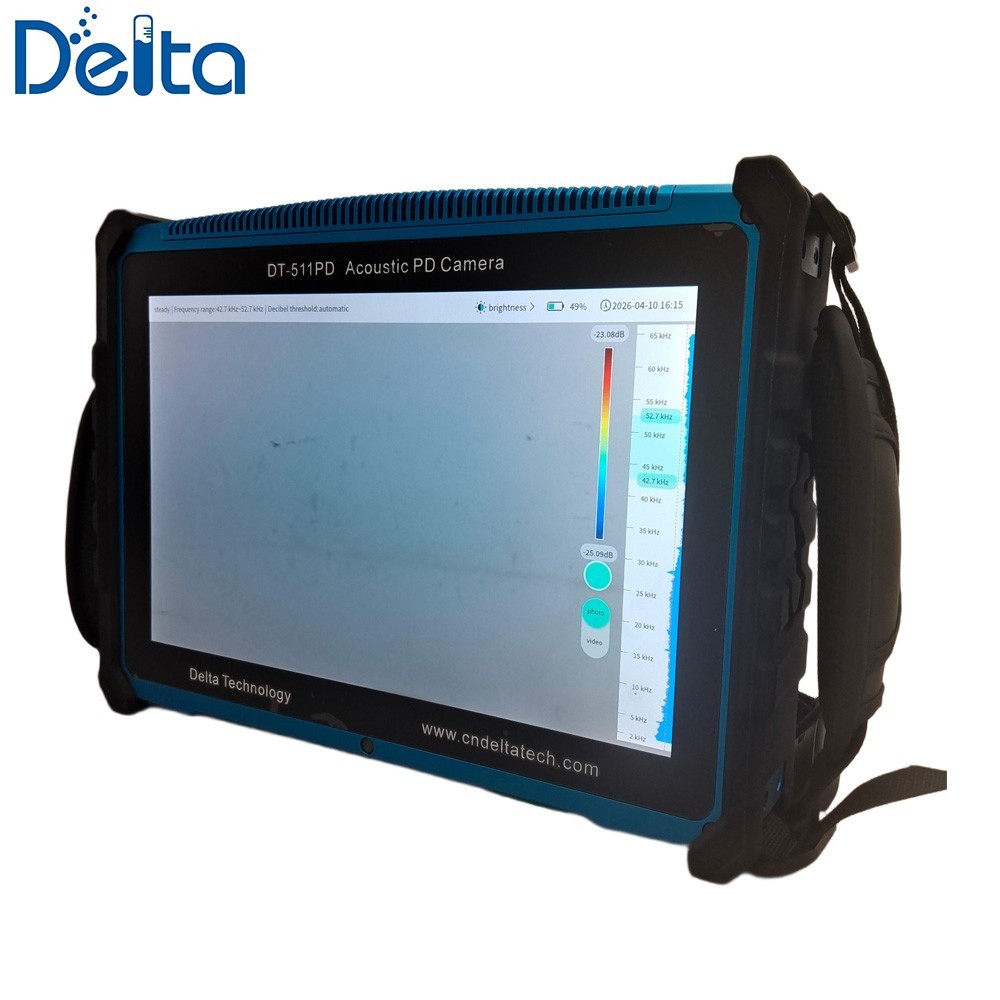

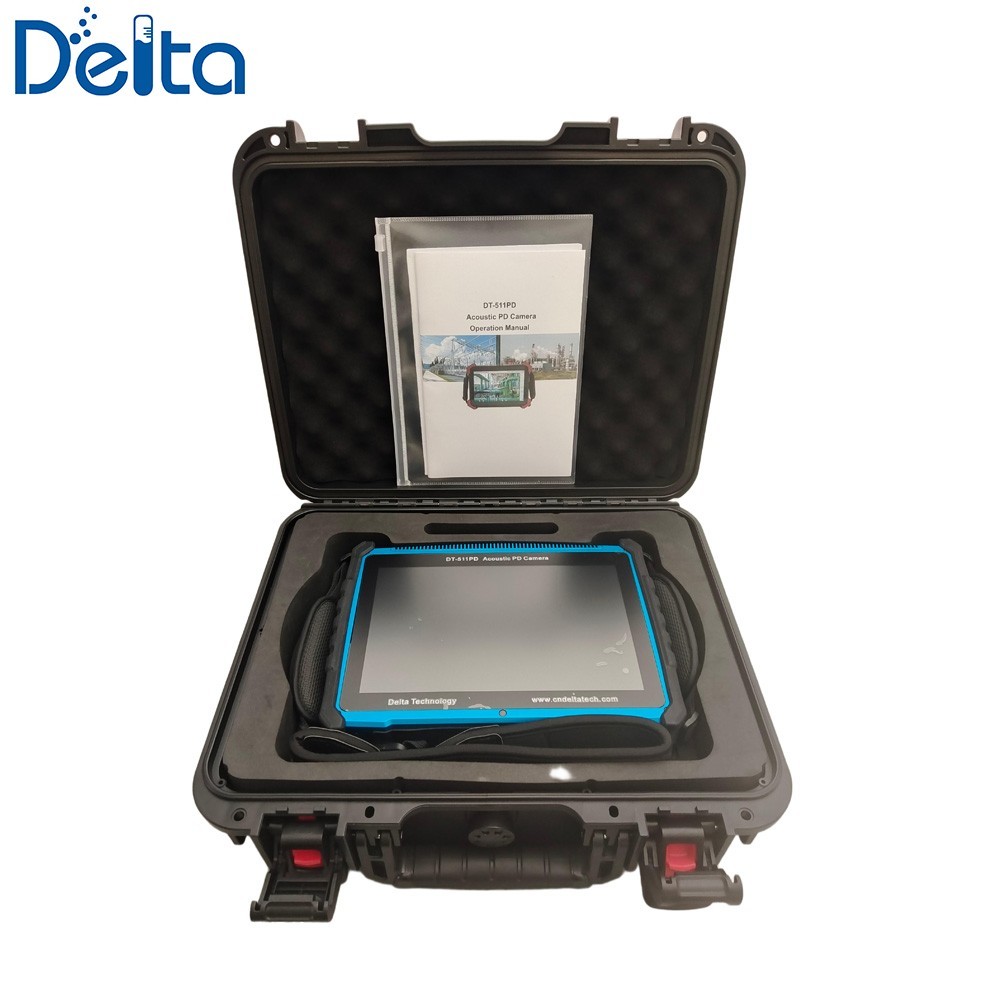

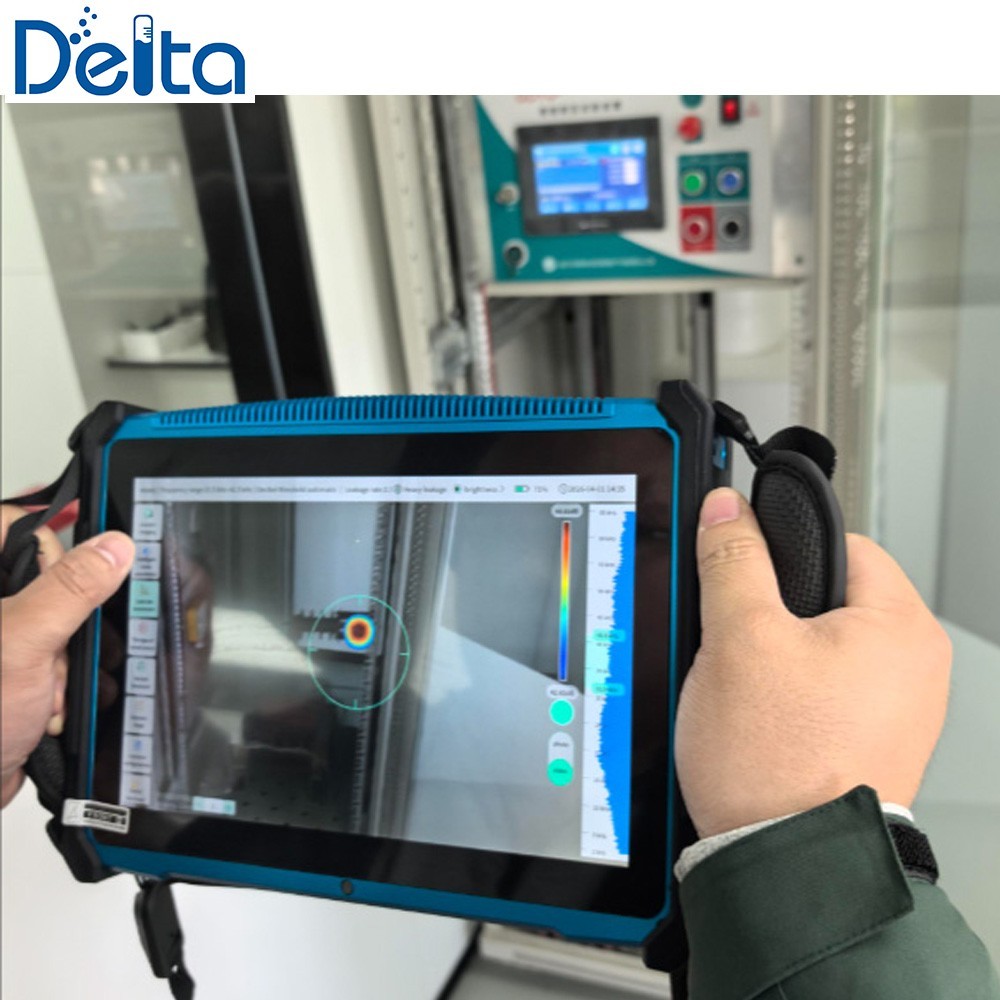

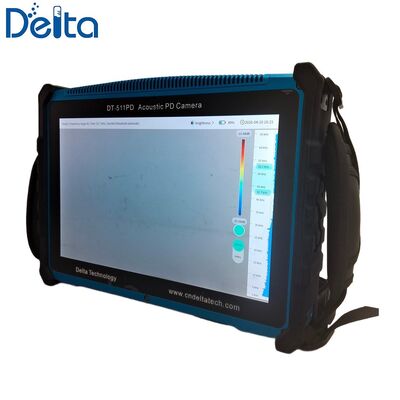

DT-511PD Handheld Ultrasonic Partial Discharge Imager
Introduction:
- DT-511PD Handheld Ultrasonic Partial Discharge Imager is a new type of partial discharge localization detector, it integrated with noise source identification and localization, gas leak localization detection and analysis and diagnosis system.
- It uses a high-sensitivity digital microphone array, which is mainly used to detect pressurized gas leakage and partial discharge of electrical insulation equipment.
Functions:
- Thermal imaging function (optional)
- Intelligent noise reduction function
- Leakage rate assessment function
- Frequency adjustment function
- Sound source type switching function
- Decibel threshold adjustment function
- Add common configuration function
- Historical record review function
- Dynamic range adjustment function
- FFT spectrum
- Partial discharge spectrum
- Photo/video recording
Parameters:
| Size | 270*190*45mm |
| Weight | <2kg |
| Shell material | Aluminum alloy+anti-drop silicone protective cover |
| IP class | IP56 |
| Display screen | 10inch capacitive type |
| Resolution | 1280*800 |
| Camera | 8MP auto focus |
| Channel | 72 channel (can be extended) |
| Microphone | High-sensitivity digital microphone |
| Measurement frequency | 2kHz-65kHz |
| Effective test distance | 0.5~50M |
| Accuracy | ±1cm |
| Charging voltage | 15V 2A |
| Intemal storage | 128GB+16GB |
| Data interface | TIF card |
| Interface type | USB3.0 / Type-C |
| Steady-state algorithm | With steady state / transient algorithm |
| Fill light | 1w Fill light |
| External sensor | Support expansion of USB external sensors, including sound level meter, sensor,etc. |
| PRPD map | Display |
| Charging time | 2 - 2.5h |
